Bettinelli’s RAM 16 Rotary Assembly Machine For Automated Assembly & Inspection

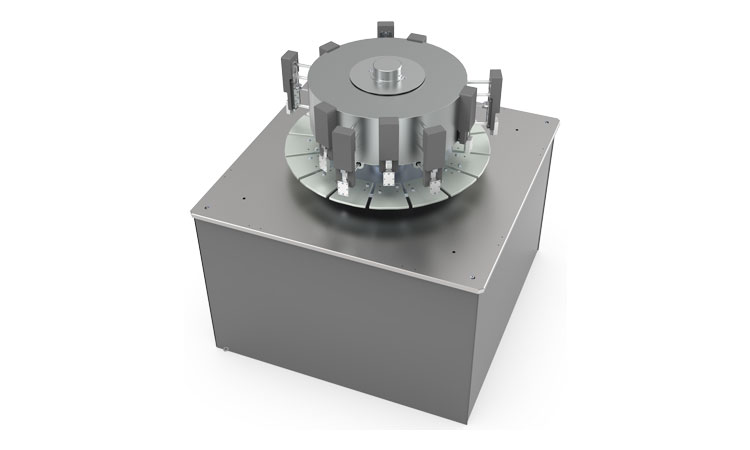

The RAM Rotary assembly machine is designed for automated assembly and inspection processes that require high precision along with smooth motions and fast cycle times. It is built around a modular design that allows the placement of different modules in any of the 16 dial plate stations according to the project requirements.

RAM provides accurate rotary indexing of each workstation for pick & place, pressing and inspection control processes. The dial plate is equipped with removable fixture pads that can be easily customized and allows for quick and easy production changeovers. Additional handling/work modules can be added over the production requirements for different part assemblies.

Technical Data:

Speed upto  80 cycles /  min

16 working stations max

Max payload: 3 kg /6.6 lbs per handling module

Rotary dial plate:

Planarity = +/- 0.02 mm

Repeatability = +/- 0.008 deg.

Max load per station: 6 kg at 60 cycles / min

Rotary Dial with Fixture Pads

Moving Components:

Handling Module – Max payload 3 kg

Pick and place cycle completed in 360 deg. of the cam

No.1 pressing control cycle in 360 deg. of the cam

Removable pads for easy customization and / or fast production format changes.
